Feature:
Weather resistance, fire protection, thermal insulation, water proof and sound insulation.
Description

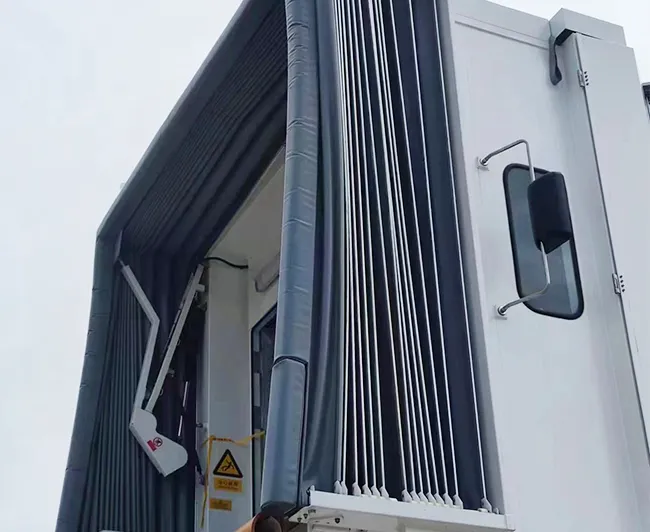

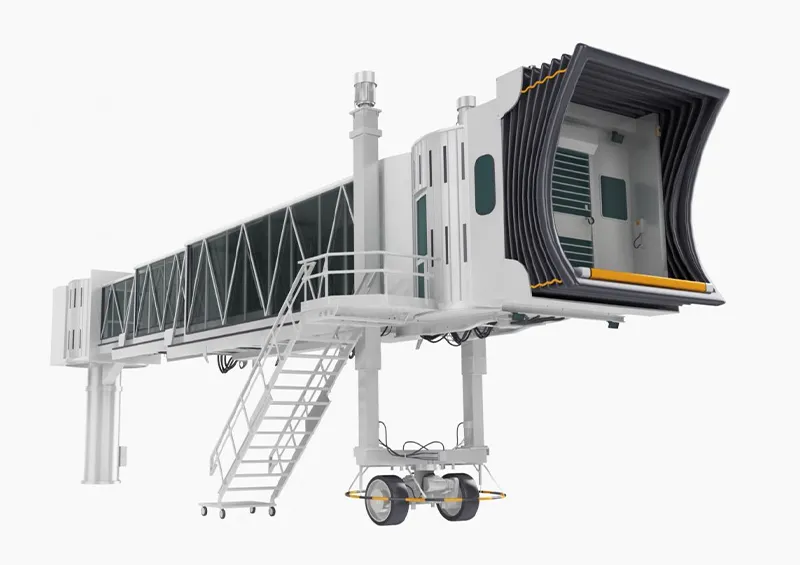

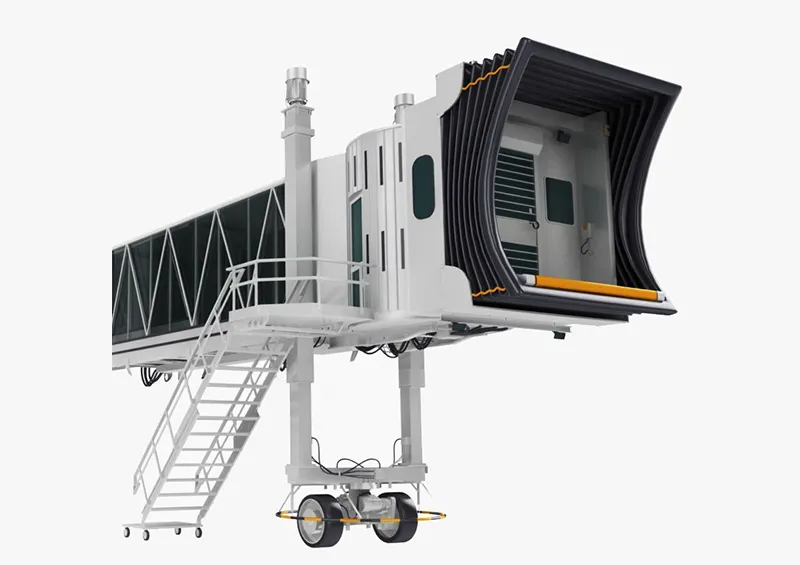

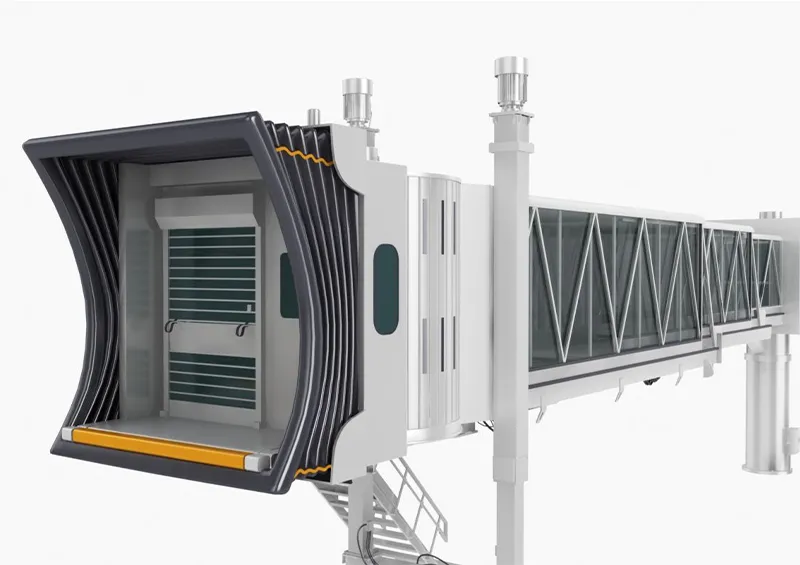

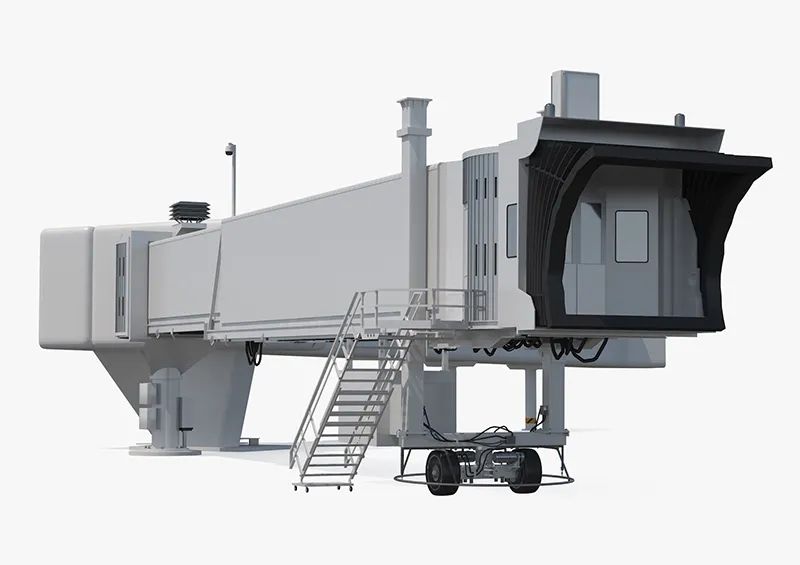

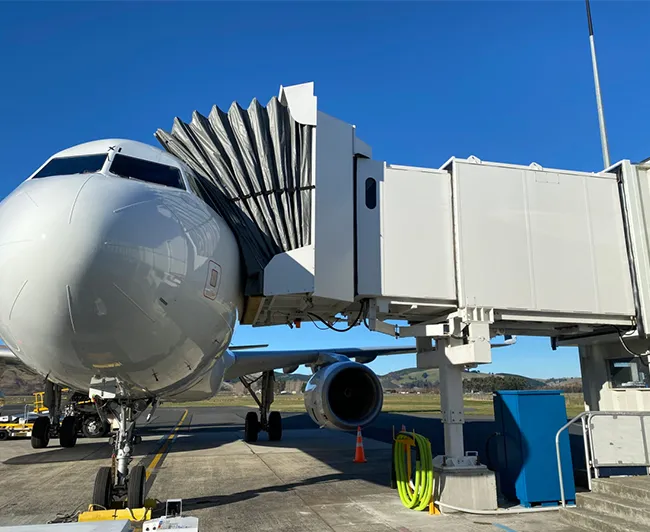

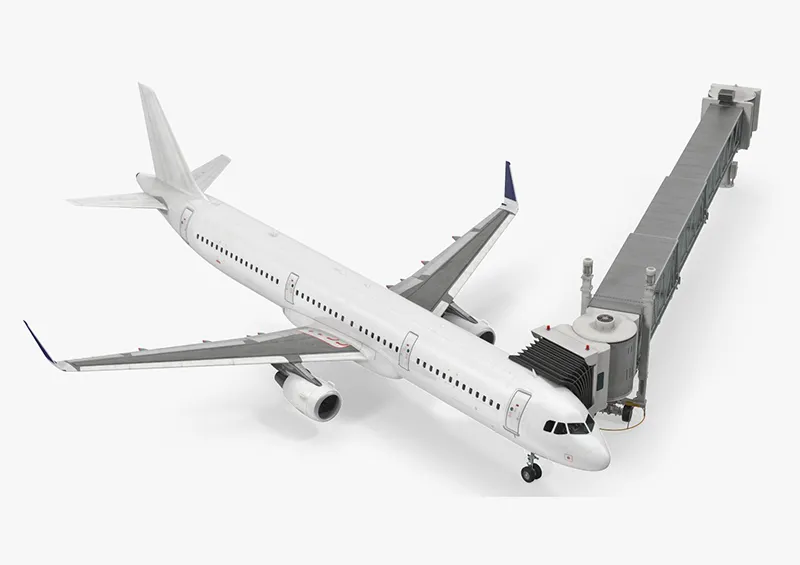

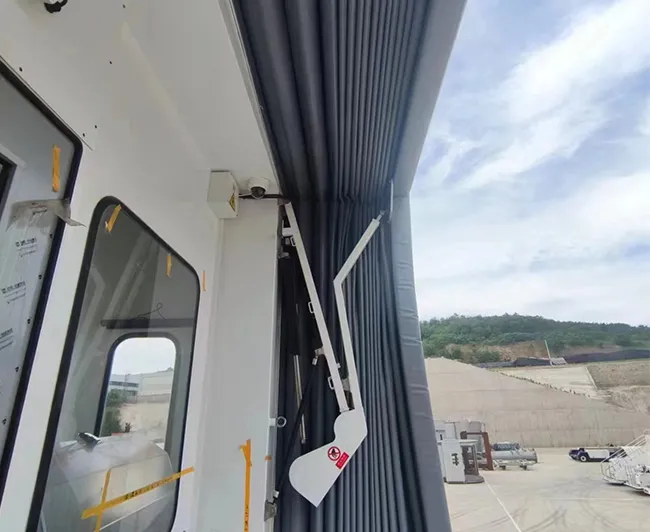

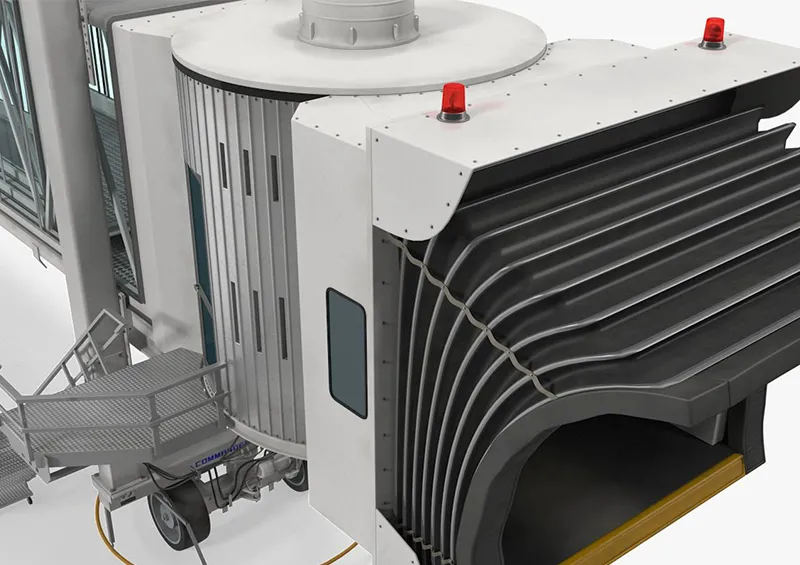

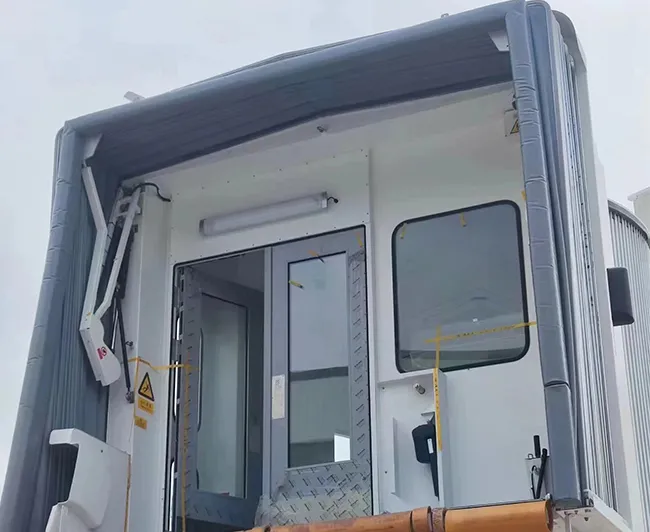

In the modern air transportation system, the airport jetway folding canopy, as a crucial part of the airport infrastructure, plays a significant role in connecting the terminal building with the aircraft door. It provides passengers with a comfortable, convenient, and safe boarding environment and also ensures the high efficiency and smooth operation of the airport.
Yonggui’s airport jetway folding canopy is designed with a perfect blend of aesthetics and practicality. The overall shape is smooth and natural, with simple and clean lines that complement the modern architectural style of the airport, becoming a unique landscape. The folding canopy adopts advanced spatial structure design concepts, enabling maximum expansion and contraction within a limited space to ensure seamless docking with different types of aircraft. Whether it is a large wide-body airliner or a small regional aircraft, it can be precisely fitted, greatly enhancing the versatility and usage efficiency of the jetway.
Application
Airport bridge, jet bridge, aircraft passenger boarding bridge, seaport gangway.
Technical Data
| Product Index | Parameter |
| Unfolding size | Meet the tension and compression range from 600mm to 2915mm (can be designed according to user's requirement) |
| Pass size | Width: 3200mm, Height: 3000mm (Can be designed based on user's requirement) |
| Operating temperature | -25℃~70℃ |
| Fire resistance | GB8624-B1 grade, NFPA701, NFPA415 |
| Weight | 160kgs |
| Maximum wind resistance | Unfolds at 33.2m/s, Retracts at 41.7m/s |
| Water tightness | Retracts at 41.7m/s: 4mm/min~6 mm/min |
| Service life | 12 years |
