Feature:
It is convenient for driver and passenger to make communication, also serve as an emergency escape passage
Waterproof, dust-free, heat protection, sound insulation
Adopts the structure design of gangway for high speed trains, suitable to the extreme conditions, such as bellow's twisting, extension and retraction.
Special material, long life cycle, high tensile strenth, good flexibility, weather resistant
Can be quickly released and connected
Description

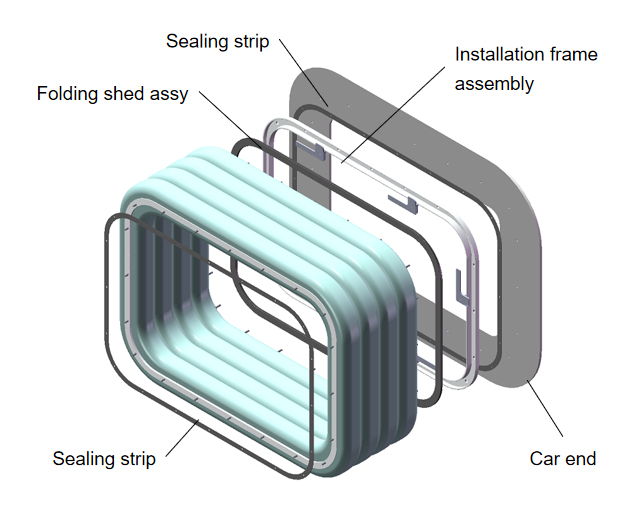

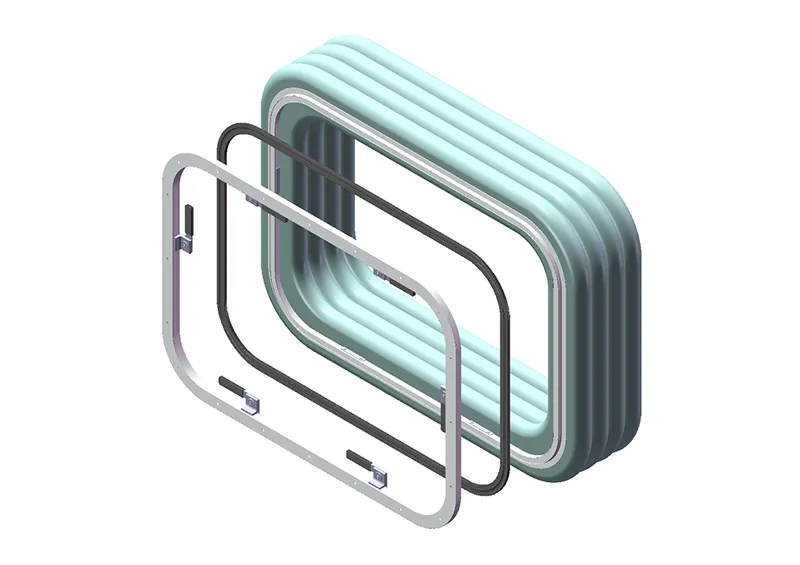

Folding bellow is used for connecting driver's cabin with living cabin, its interface is in line with the design requirement of recreational vehicle. It provides a convenient passageway for passengers and drivers.
Application
SITRAK, FAW, BYDT5, Benz AROCS, Benz UNIMOG, Benz ATEGO, VOLVO FMX500 FM460 etc.
Technical Data
| Product Index | Parameter |
| Distance between car ends | According to vehicle’s parameter |
| Pass size | According to customer’s requirement |
| Operating temperature | -40℃~70℃ |
| Fire resistance | EN45545 HL2 (high standard in the railway industry) |
| Sound proof | ≥32dB (A) |
| Thermal insulation | K≤/3.5W/(m² K) |
| Torsion angle | Two rings (±2.5°),Three rings (±3.5°),Four rings (±5°) |
| Water tightness | The leakage time for the air pressure inside the windshield to drop from 3600Pa to 1350Pa is greater than 100 seconds |
| Service life | 15 years |
