Feature:
1. Waterproof, heat preservation, noise reduction
2. Weather resistance, fire resistance, high duralibity
3. Lightweight, maintenance-free
Description

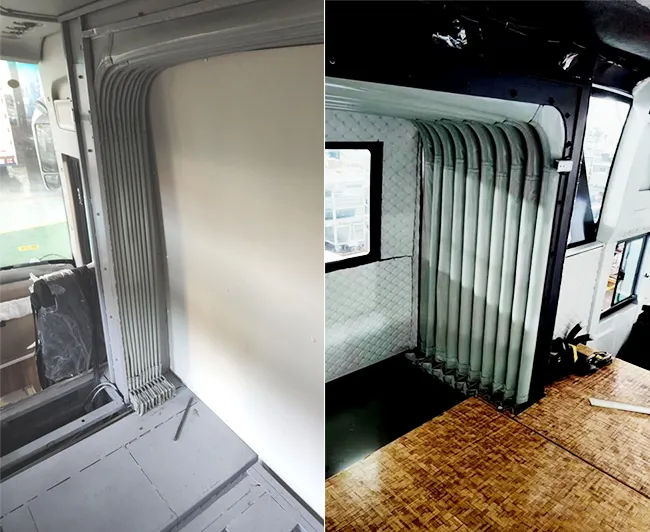

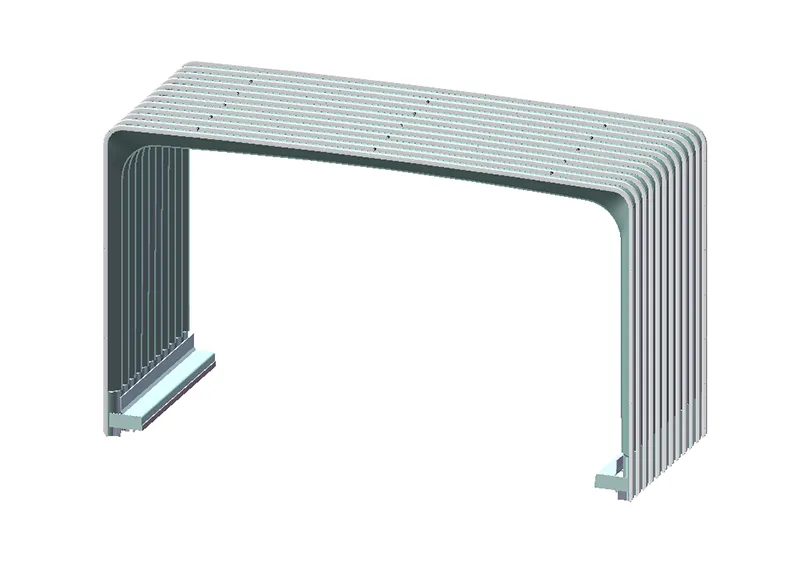

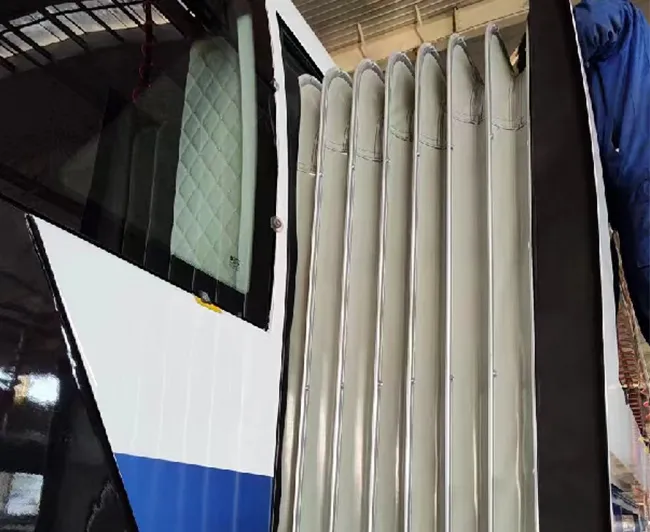

The expansion folding bellow assembly (soft expansion) is the main expansion channel on the two wings of large road vehicles. By unfolding the folding bellow, the interior space can be expanded, and the integrated seats can be used to achieve "one car for two purposes". It can meet the riding needs during the day; at night, through the expansion of the vehicle body and the expansion of the seat function, it can be used for outdoor camping by drivers and passengers.
Application

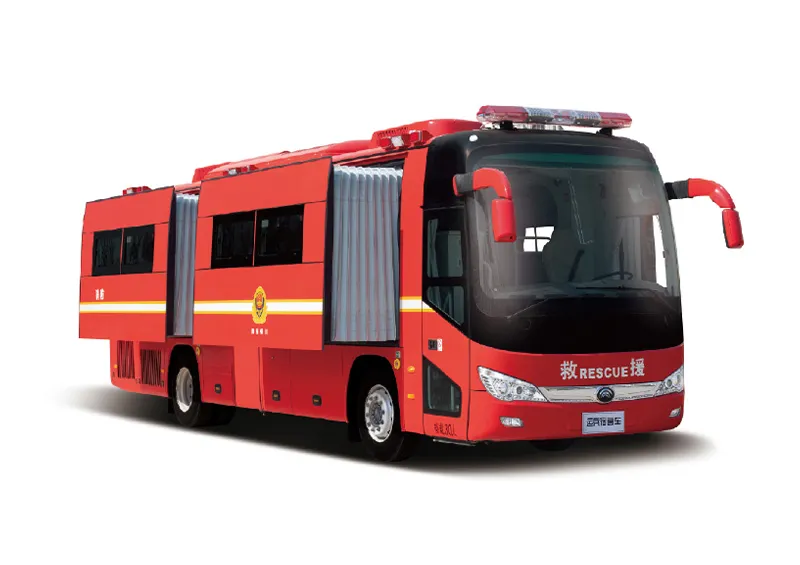

Camping vehicle, command vehicle, medical vehicle etc.
Technical Data
| Product Index | Parameter |
| Extended size | In line with the compression and extension range of between 170mm and 1100mm(can be designed according to vehicle parameters) |
| Pass size | (Custom is avaialble)pass width 3200mm,pass height 3000mm |
| Operating temperature | -40℃~80℃ |
| Fire resistance | En45545 Hl2 Or GB38262 |
| Weight | 75kg(According to proudct size |
| Vehicle type | camping vehicle, command vehicle, ambulance car, recreational vehicle |
| Water tightness | Compliance with GB/T12480, no water leakage happens after the bellow is exposed to rain for more than 30 minutes |
| Service life | 12 years |
