Feature:
Higher and better sound insulation, thermal protection and fire retardancy

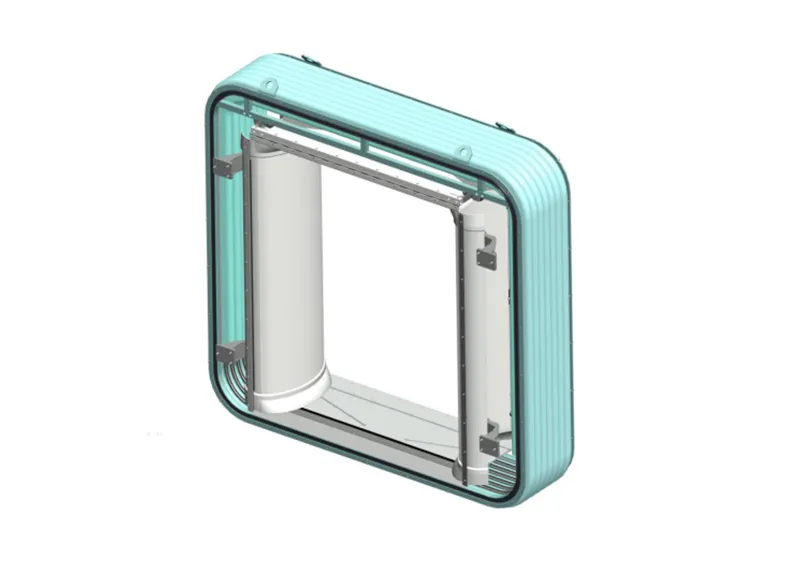

Gangway system with self-support inner pairing, double bellow, olive shape
Quick-release and coupling structure
Introduction

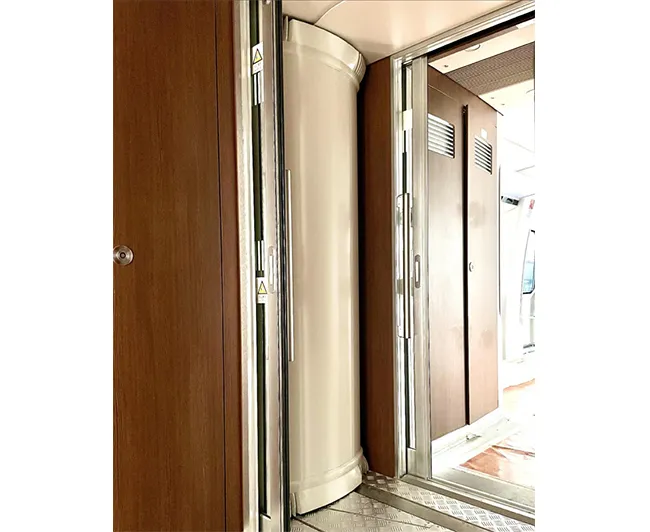

Double bellow with inner and outer olive shape, greatly improves the sound proofing and thermal insulation. Bellow is made of hypalon rubber composite, it has stronger weather resistance and higher mechanical performance. The inner pairing design makes the passageway more beautiful, providing passengers with a more comfortable trip experience. This gangway is a good fit for CRH6 bullet trains, subway metro trains and intercity commuter trains.
Specification
| Gangway structure | Olive shape ,double bellow with internal panels |
| Distance between car ends | 500mm |
| Clearance height | Equal or more than 1900mm |
| Clearance width | Equal or more than 1200mm |
| Life period | 12 years for folding bellow, 8-10 years for inner panels, 30 years for metal components |
| Sound insulation | ≥36dB（A） |
| Thermal insulation | ≤4.0 W/（m2·K） |
| Load capacity | Compliant with the requirement of AW3, B/T 3094-2015 |
| Fire protection | Compliant with DIN5510-3 |
| Weight | 360 kgs |
