Feature:
Higher and better sound insulation, thermal protection and fire retardancy
Introduction

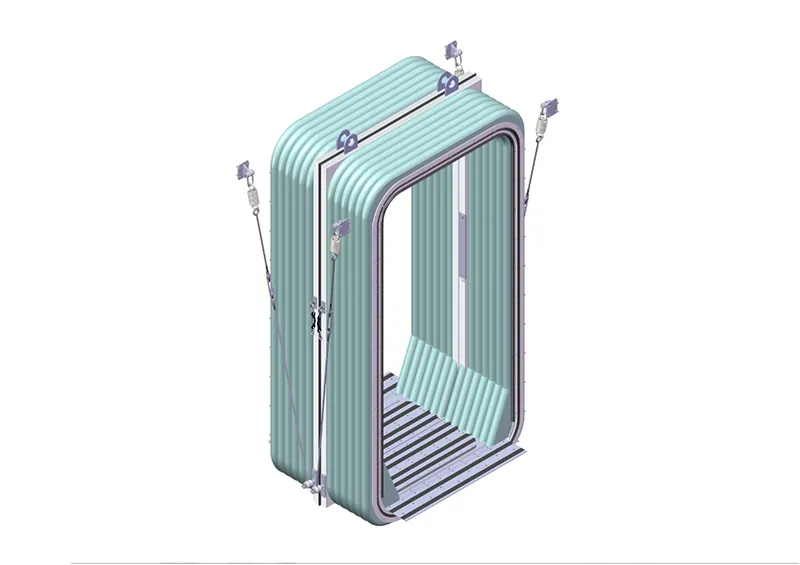

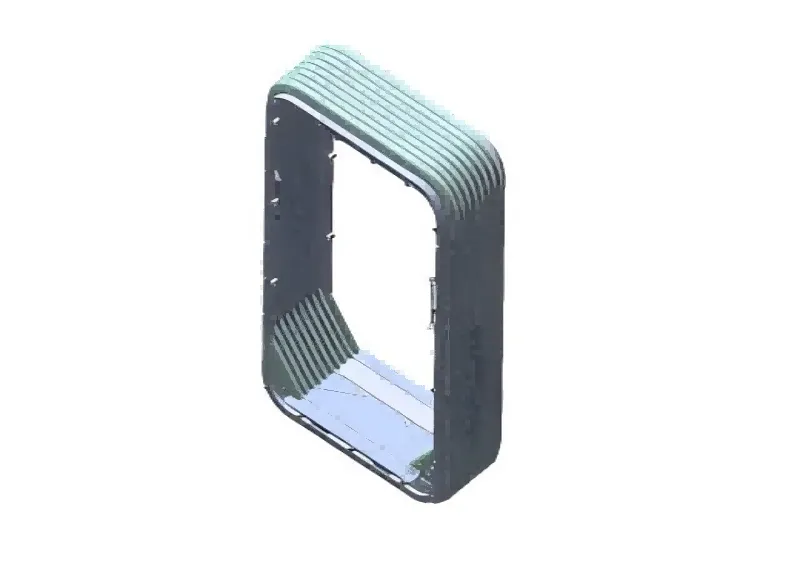

The gangway use the structure of double bellow with inner and outer olive shape, it greatly improves the sound proofing and thermal insulation. The bellow material is hypalon cloth which has stronger weather resistance and higher mechanical performance, the gangway is connected with the car body through the holes of the end wall frame, it ensures the stability and consistency.
Specification
| Gangway structure | Olive shape and double bellow |
| Distance between car ends | 800mm |
| Clearance height | Equal or more than 2000mm |
| Clearance width | Equal or more than 970mm |
| Life period | 12 years for folding bellow and 30 years for metal components |
| Sound insulation | ≥34dB（A） |
| Thermal insulation | ≤3.5W/（m2·K） |
| Load capacity | Compliant with the requirement of AW3, B/T 3094-2015 |
| Fire protection | Compliant with DIN5510-2 |
| Weight | 170kg±3% |
