Feature:
Smaller passage width
No interior panels
Quick connection and separation
Introduction
Besides high speed trains application, flexible gangway system is applied in national railway vehicles. The flexible bellow serves as intermediate connection device, it provides passengers with a comfortable and spacious avenue, which enables every traveller on the train to freely move from one coach to the next one.
Specification
National train application: 160,25K,25G,25T

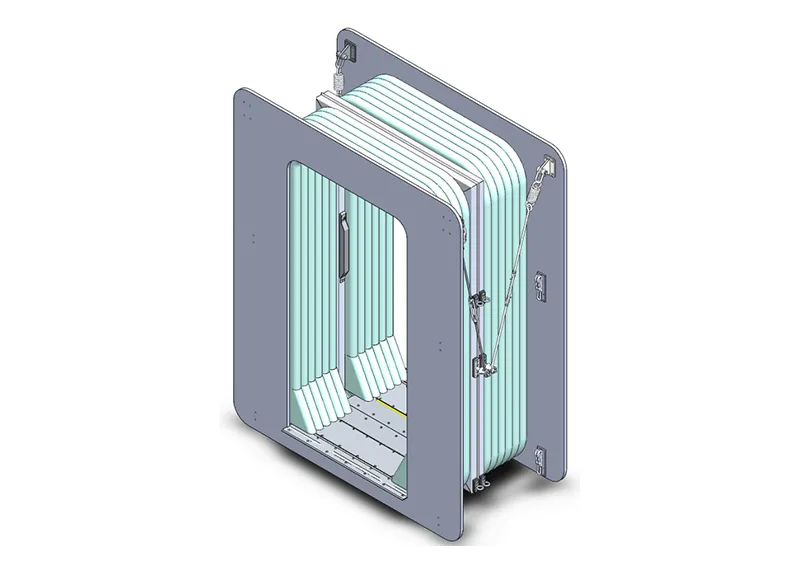

Main structure: The whole folding bellow, bridge plate
| Product property | Reference value |
| Passing curve ability | Radius 145 |
| Passing Dimension (Width*Height) | 970mm*2000mm |
| Distance between the car ends | 800mm |
| Fire protection | EN45545/BS6853/DIN5510 (optional) |
| Sound proofing | Equal or more than 30dB |
| Thermal insulation | K≤/3.5W/(m* K) |
| Water proofing | No leakage, according to IEC61133 |
| Operating speed | 160 km/hour at maximum |
