Feature:
Three piece type protection plate, rubber skirts at the top and bottom side
Only one welding point on the connection frame makes the gangway system more light weighted
Introduction

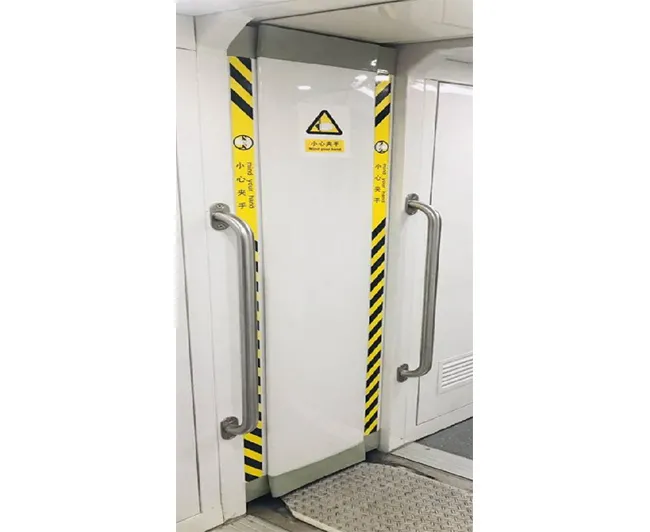

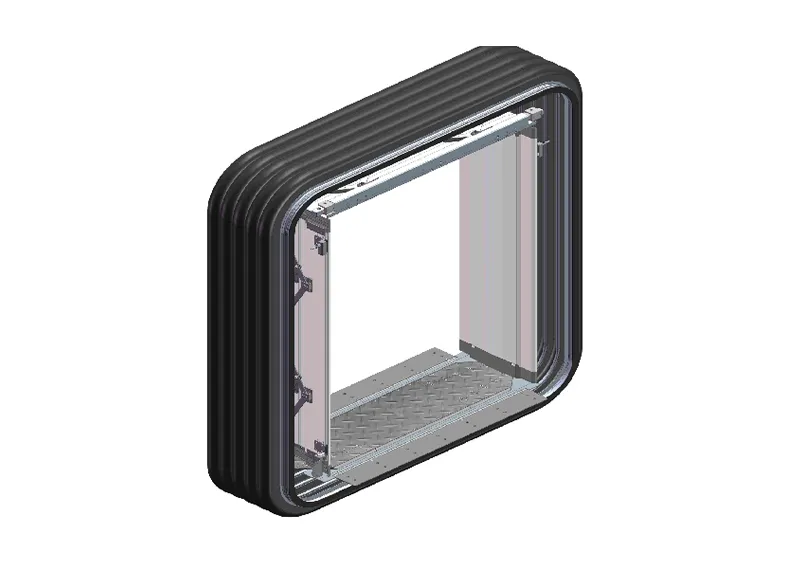

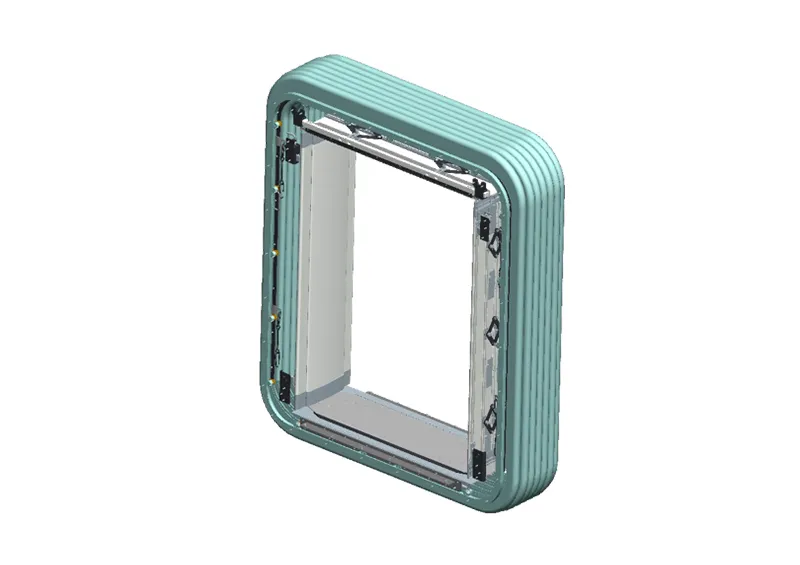

For the metro B type train gangway system, the main structure consists of folding canopies, three -piece side plate, ceiling plate and foot & bridge plate. Three-piece side plate adopts 3 pairs of scissors system to connect one another, it will reduce the gap caused by the train passing on the curve track line, protect the side plate from abrasiveness and keep passengers from being pinched.
Specification
Train application: Metro B type, intercity express train

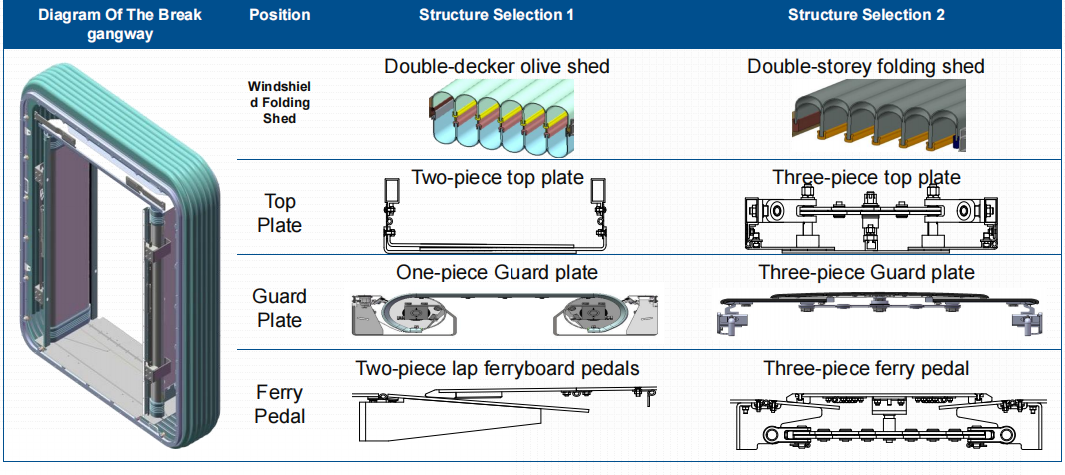

Main structure: Integral folding bellow, three-piece wall panel, ceiling panel, treading and transition plate
| Product property | Reference value |
| Passing curve ability | Radius 110m and S curve |
| Passing Dimension (Width*Height) | 1300*900mm or 1500*1900mm |
| Distance between the car ends | 520mm/660mm (side wall) |
| Fire protection | EN45545/BS6853/DIN5510 (optional) |
| Sound proofing | Equal or more than 36dB, 38dB,40db (optional) |
| Thermal insulation | K≤/3.0 W/(m* K) |
| Water proofing | No leakage, according to IEC61133 |
| Air tightness | Pressure changes from 3.6KPa to 1.35KPa, lasts more than 100 seconds |
| Support method | Self-support |
| Operating speed | 160 km/hour at maximum |
Advantage

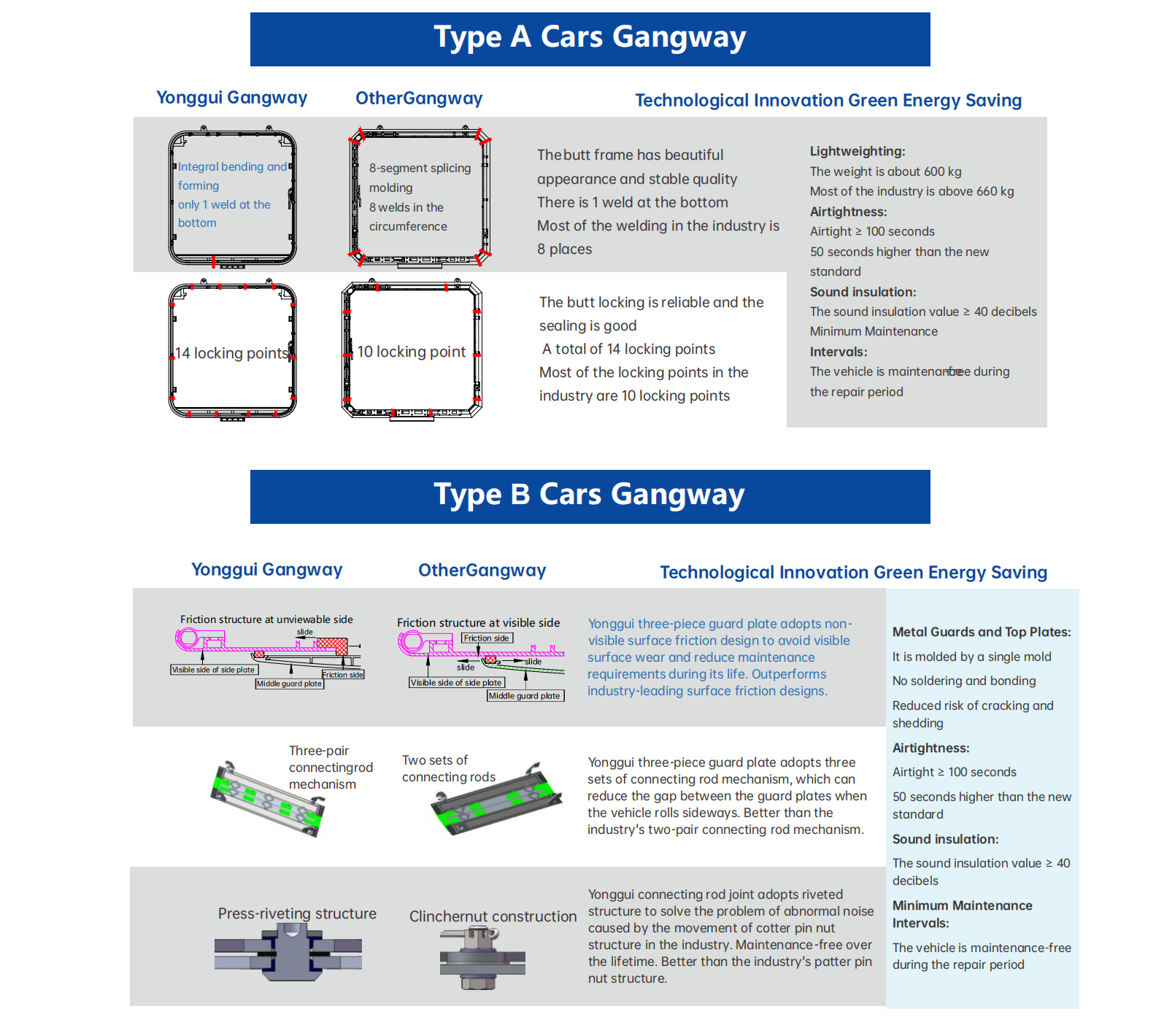

B Type Structure
