Feature:

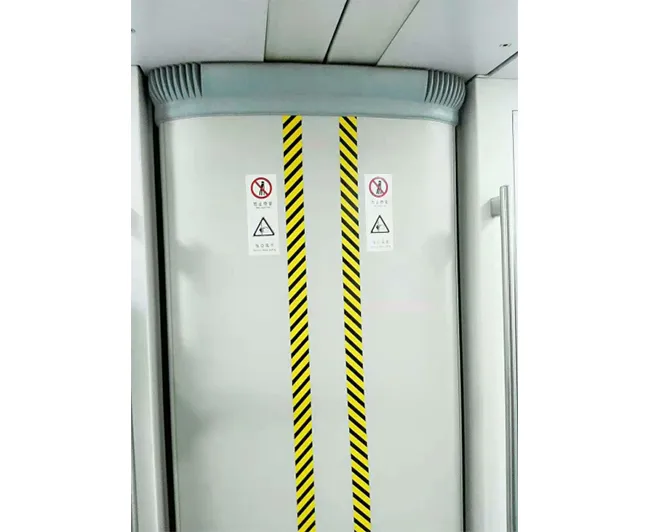

One-piece inner panel
Quick to separate the gangway, and simple to attache it onto the end wall of car body.

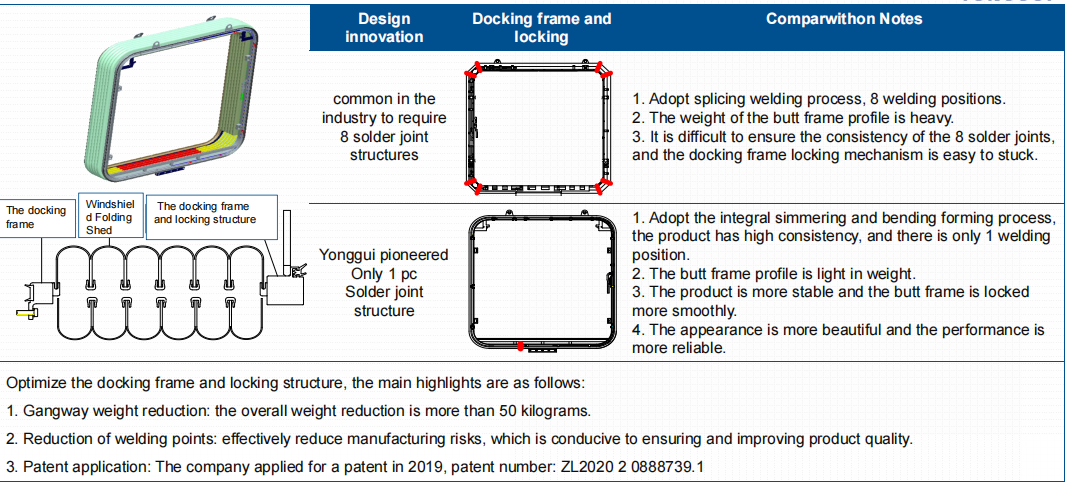

Only one welding point on the connection frame makes the gangway system more light weighted
Introduction
For the metro train gangway system, the interior panel design provides a comfortable zone to passengers, a beautiful decoration makes passenger feel relaxed and joyful during their short trip. Gangway system can be quickly release and connected with car body, which reduces the operation costs and maintenance costs.
Specification
Train application: Metro train, intercity express train, intercity D type train

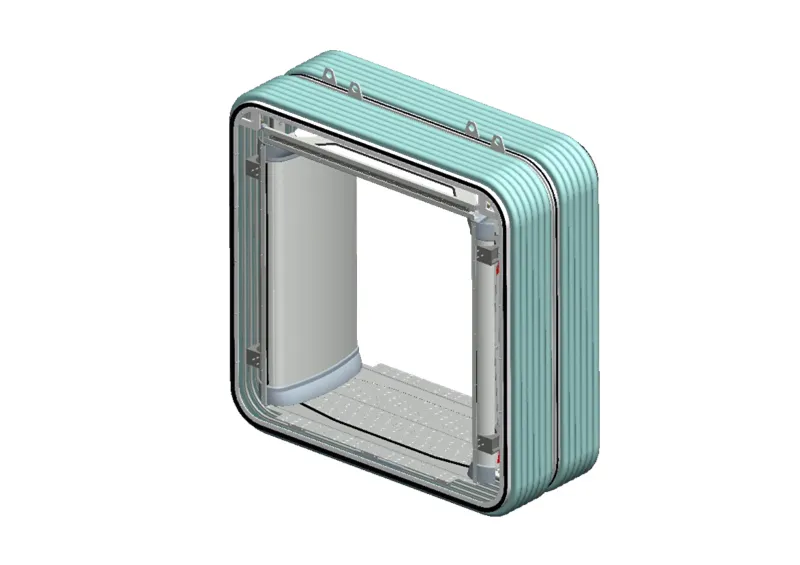

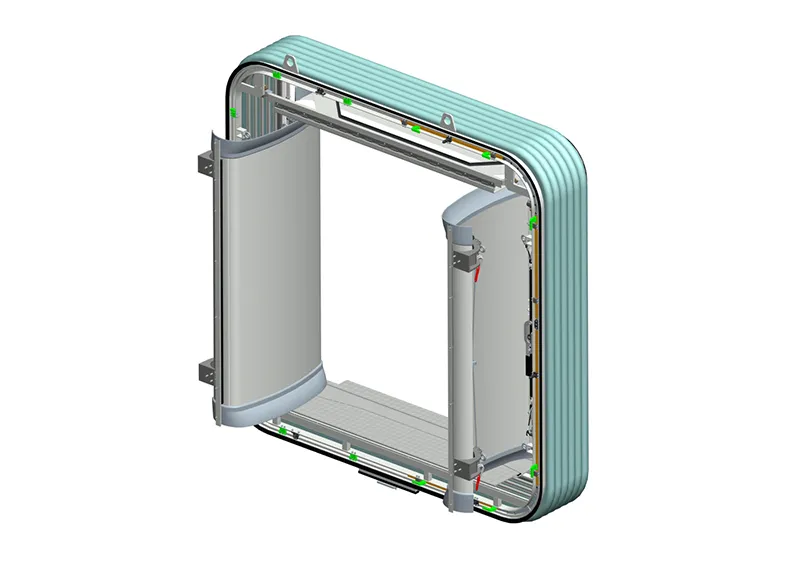

Main structure: Separated folding bellow, one-piece wall panel and ceiling panel, treading and transition plate
| Product property | Reference value |
| Passing curve ability | Radius 110m and S curve |
| Passing Dimension (Width*Height) | 1300*900mm or 1500*1900mm |
| Distance between the car ends | 920mm/800mm |
| Fire protection | EN45545/BS6853/DIN5510 (optional) |
| Sound proofing | Equal or more than 36dB, 38dB,40db (optional) |
| Thermal insulation | K≤/3W/(m* K) |
| Water proofing | No leakage, according to IEC61133 |
| Air tightness | Pressure changes from 3.6KPa to 1.35KPa, lasts more than 100 seconds |
| Support method | Coupler support |
| Operating speed | 160 km/hour at maximum |

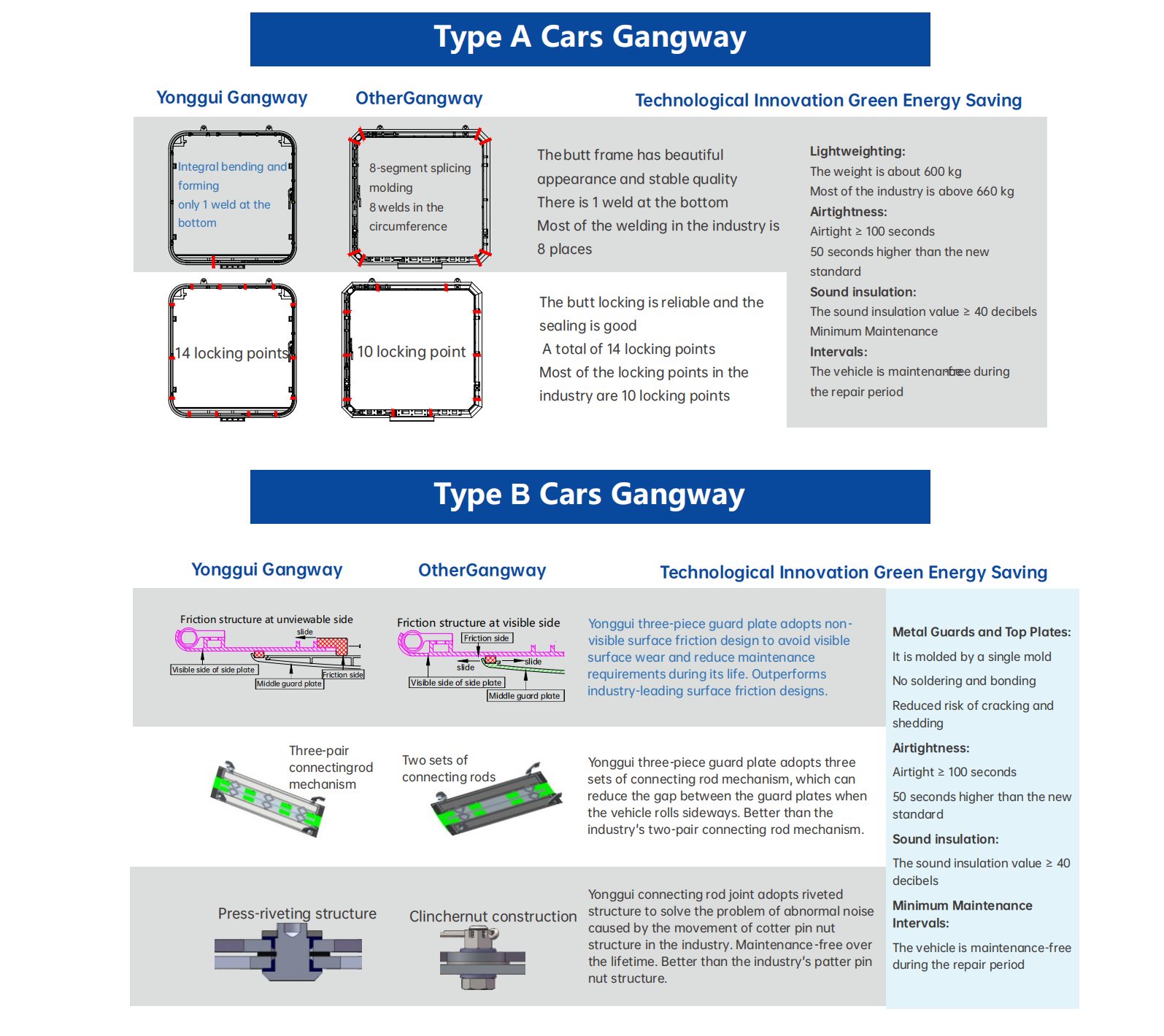

Advantage

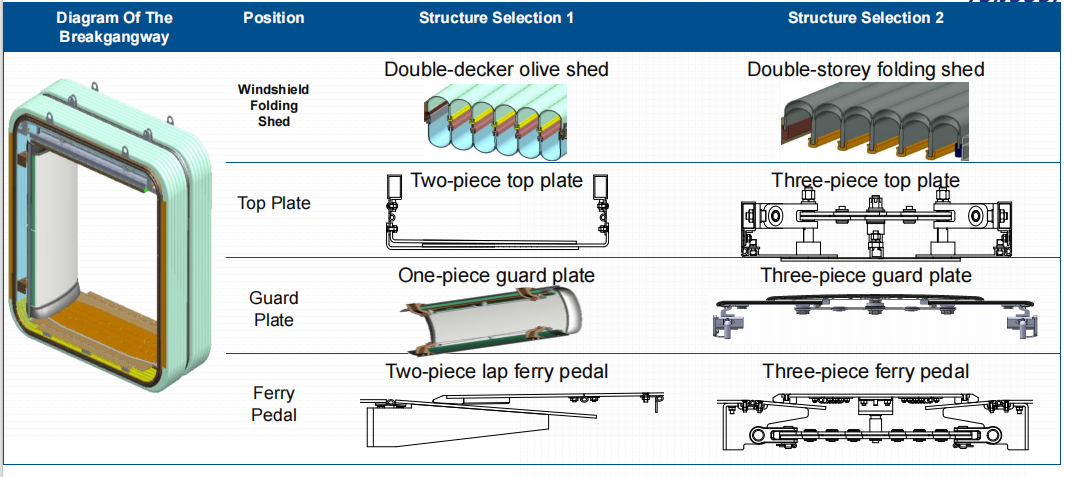

Structure
Explore the Features
