Feature:
One-piece inner panel.
Quick to separate the gangway, and simple to attache it onto the end wall of car body.
Only one welding point on the connection frame makes the gangway system more light weighted.
Introduction

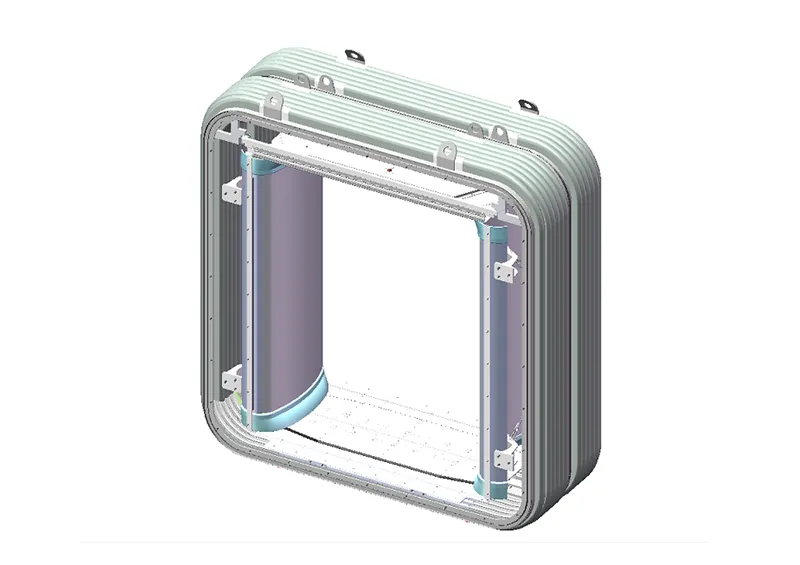

This gangway system is specially used for metro AS type train, intercity express train and CRH6 bullet trains. The interior panel design provides a comfortable zone to passengers,it is a beautiful decoration makes passenger feel relaxed and joyful during their short trip. Gangway system can be quickly released and connected with car body, which reduces the operation costs and maintenance costs.
Specification
Train application: Metro AS train, intercity express train, CRH6
Main structure: Integral folding bellow, one-piece wall panel, ceiling panel, treading and transition plate
| Product property | Reference value |
| Passing curve ability | Radius 110m and S curve |
| Passing Dimension (Width*Height) | 1500*1900mm or 1200*1900mm |
| Distance between the car ends | 500mm/700mm |
| Fire protection | EN45545/BS6853/DIN5510 (optional) |
| Sound proofing | Equal or more than 36dB, 38dB,40db (optional) |
| Thermal insulation | K≤/3.5 W/(m* K) |
| Water proofing | No leakage, according to IEC61133 |
| Air tightness | Pressure changes from 3.6KPa to 1.35KPa, lasts more than 100 seconds |
| Support method | Self-support |
| Operating speed | 200 km/hour at maximum |
